8 Ton Hydraulic Truck Mounted Crane

53000.00
63600.00
        SPECIAL OFFER

          Please select all product options

          Product was out of stock

          share
          Description
          MAIN PARAMETERS
          *8 Ton Dongfeng Hydraulic Truck Mounted Crane*

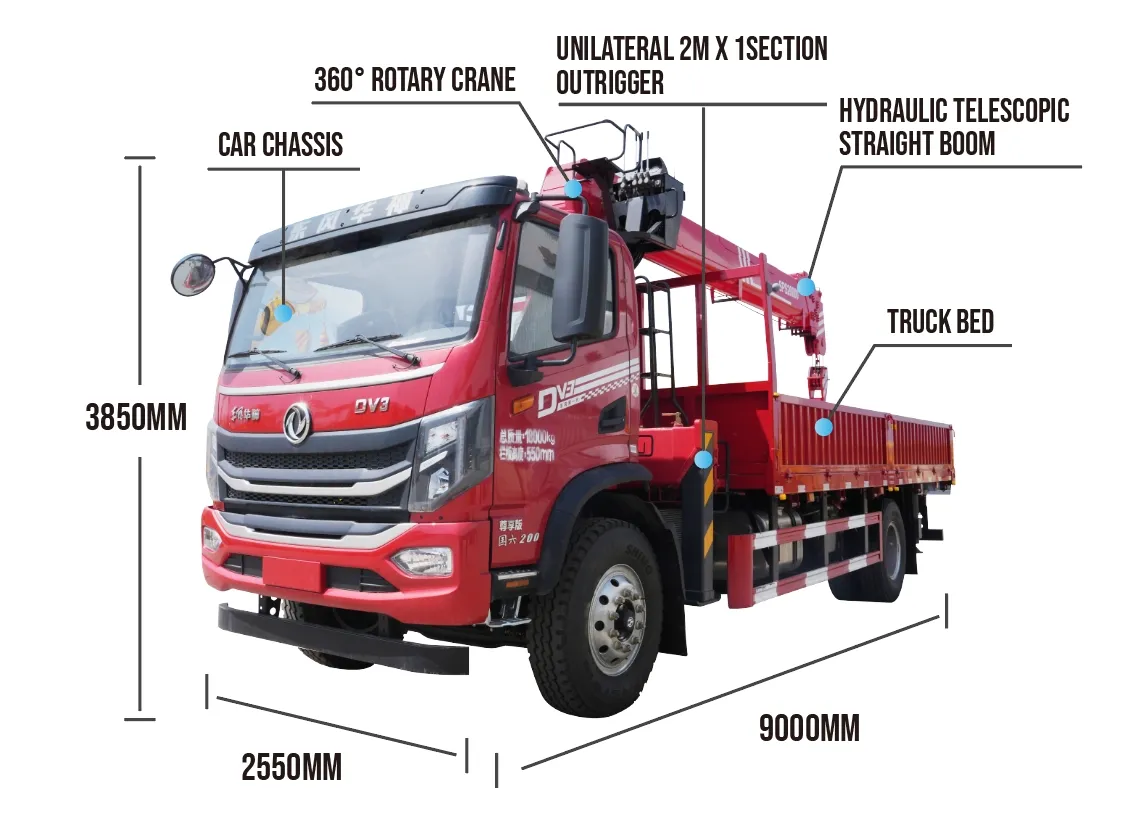

          Overall dimension 9000*2550*3850mm
          Truck bed dimensions 6100*2450*550mm
          Wheelbase 5100mm
          Max. weight (full load) 18000kg
          Truck mounted crane weight 12080kg
          Rated truck loading capacity 5725kg
          CHASSIS
          Chassis model Dongfeng Huashen DV3
          Gearbox model Fast 8-speed transmission
          Engine Brand Yuchai
          Engine power 200hp/147kw
          Steering Power steering available
          Axle load 6500/11500kg
          Max. speed 88km/h
          Cooling system Air conditioner
          Leaf spring 9/11+8
          Approch/Departure angle 21°/17°
          ABS Yes
          Fuel type Diesel
          Displacement 4156cc
          Tyre 1000R20-18PR
          Dual-pump confluence Aluminum hydraulic oil tank

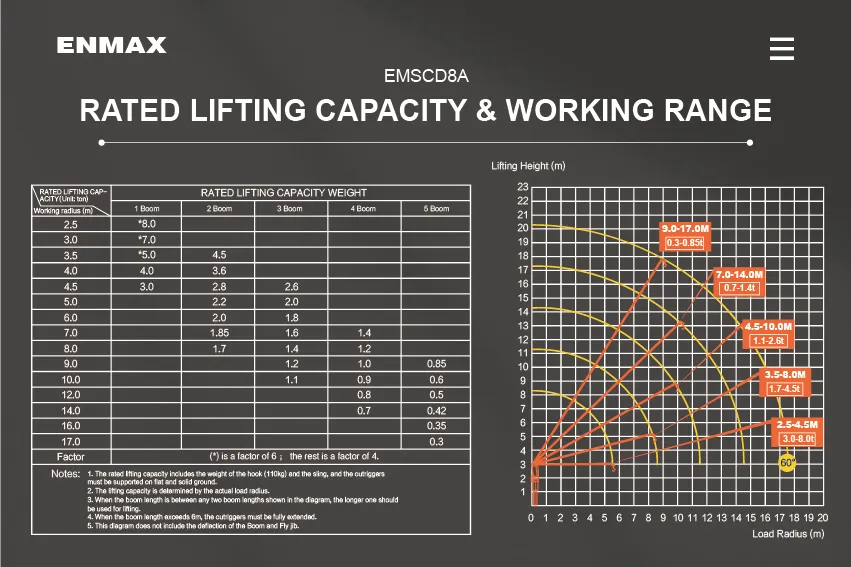

          LIFTING & SLEWING SYSTEM
          Max. lifting weight 8000kg
          Max. lifting height 20m
          Max. horizontal boom length 17.5m
          Max. elevation angle 0-80°
          Boom 5m x 5 sections
          Boom rope Out rope
